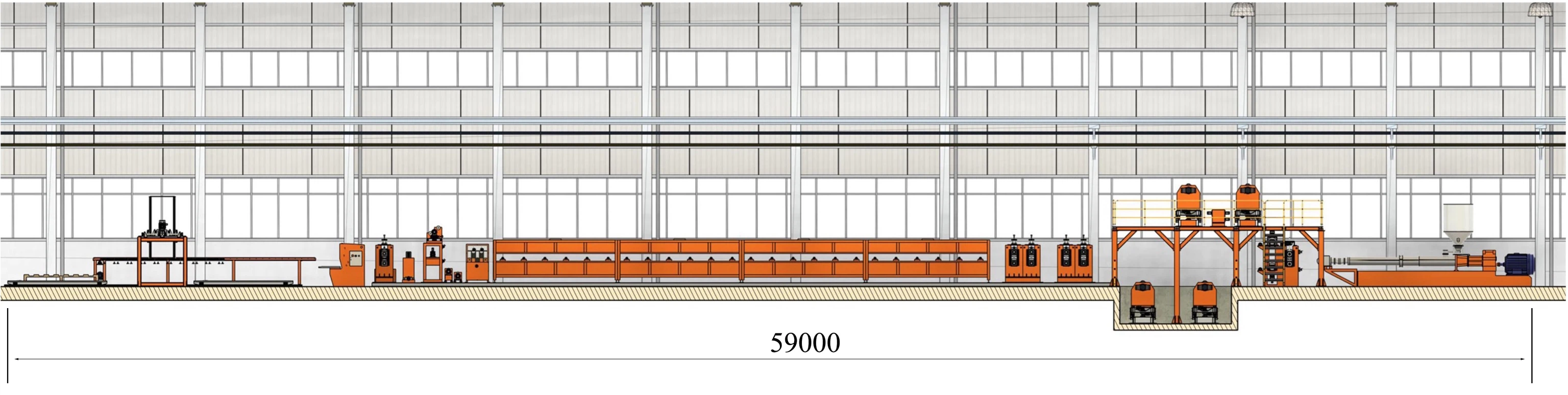

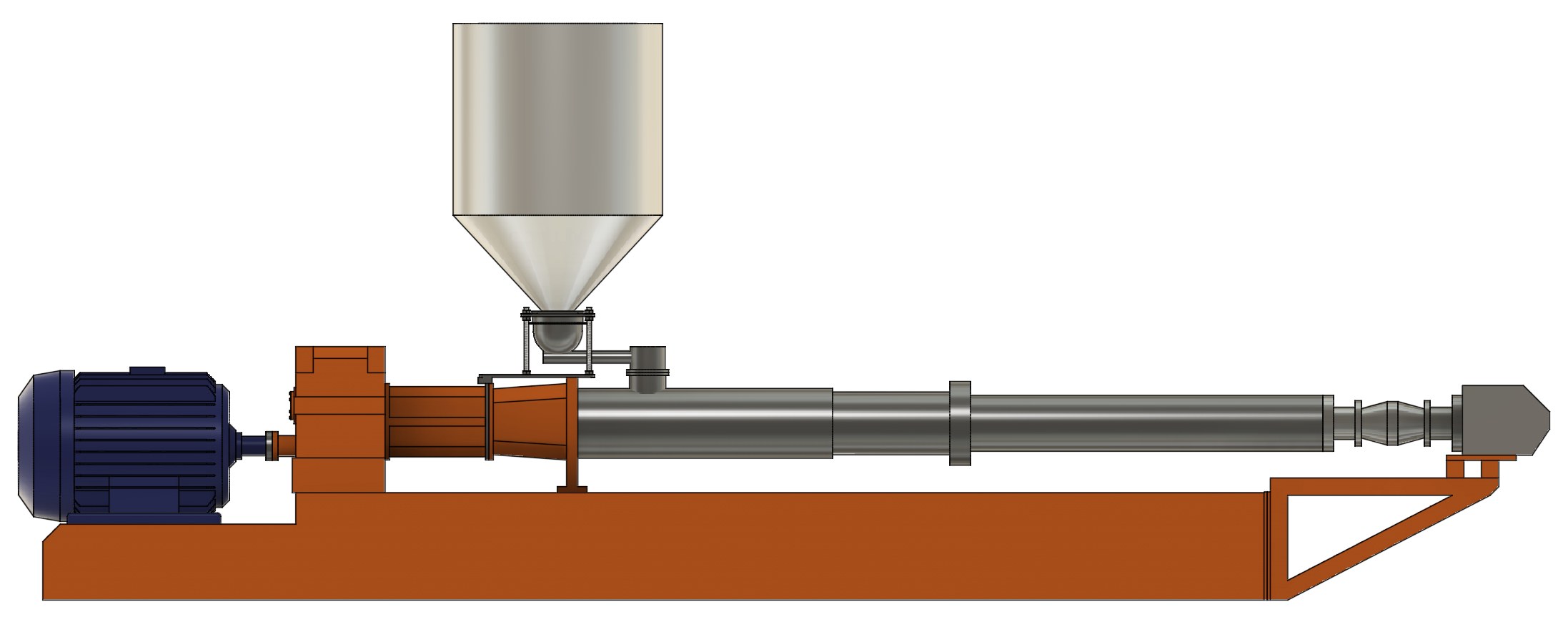

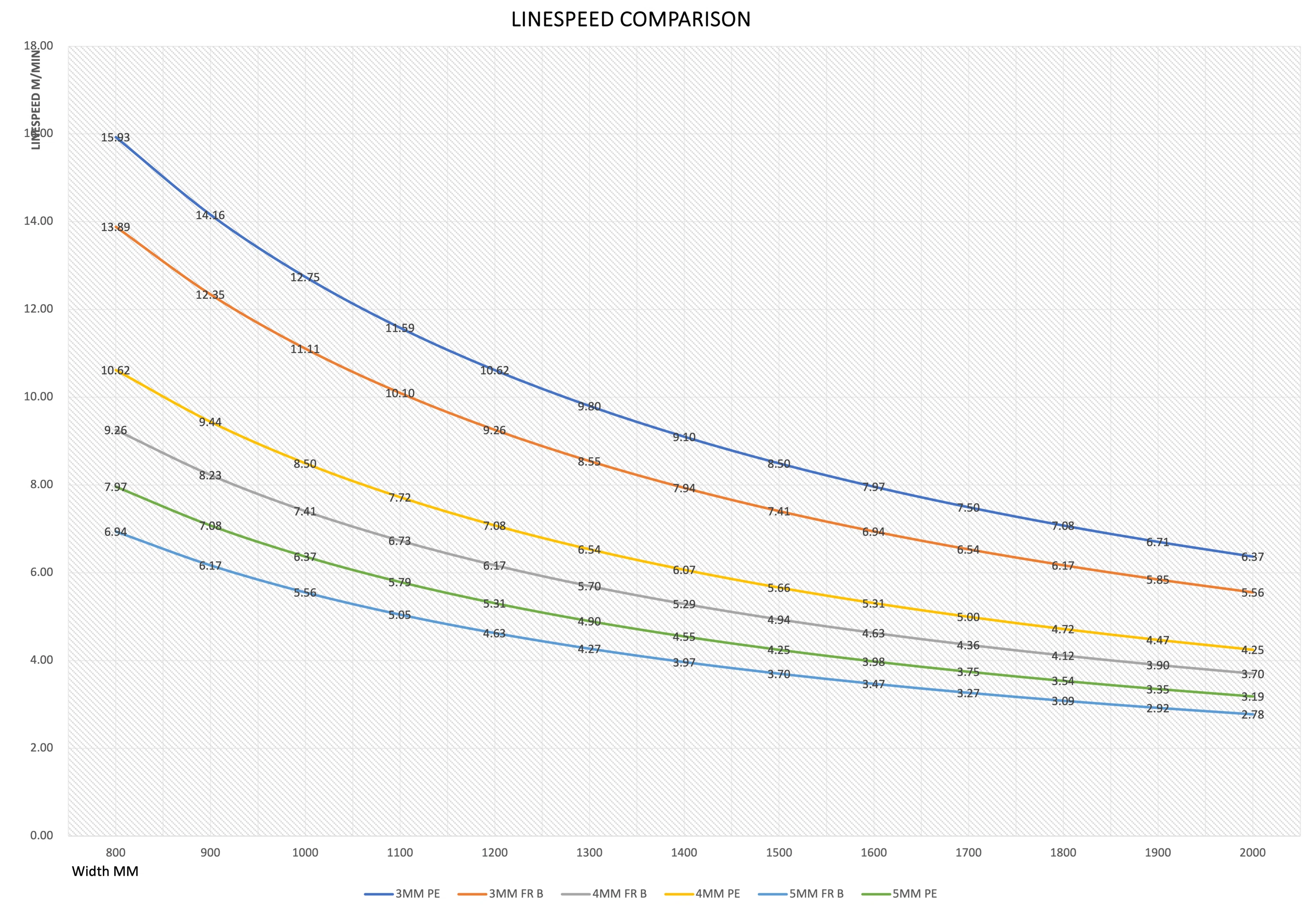

Use the new type of extruder, the whole line speed can reach at 5.31M/min when making 4MM*1600MM ACP. The line speed increased by 62.5% compared with the 75 Model extruder.The main motor is 250KW SIEMENS motor.

Type: 95#
capacity: 2000Ton/h PE
Motor: Siemens
Automatic feeding system

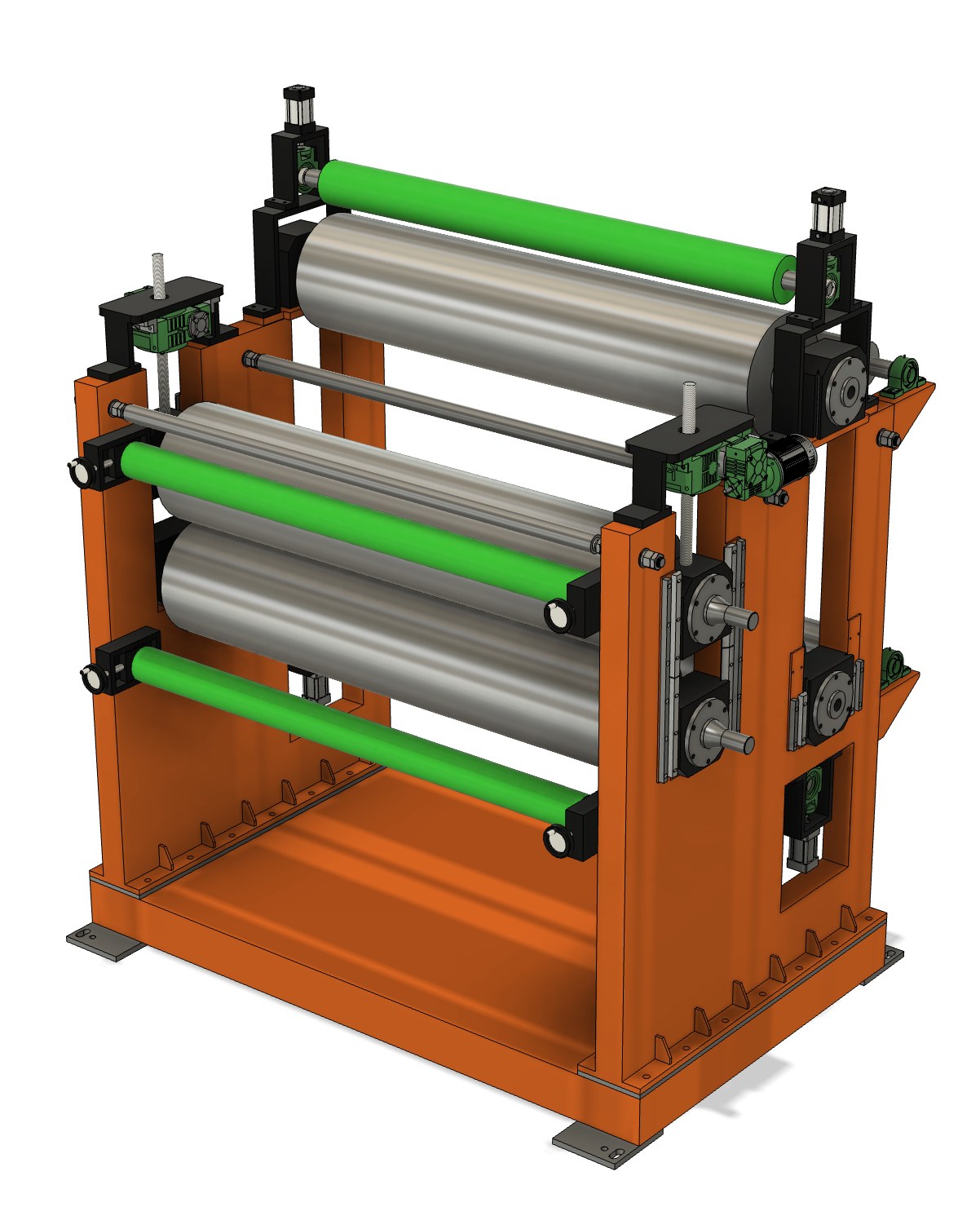

Two-Roller Lamination Machine

Use 2pcs of Ф395mm big diameter metal rollers, heating by hot oil, inner gallbladder construct can make sure the temperature difference of the surface small than ±3℃, then the polymer film and aluminum roll are bonded uniformity.

Use 2pcs of Ф395mm big diameter metal rollers, constant temperature by water, inner gallbladder construct can make sure the temperature difference of the surface small than ±3℃. This machine is to compound the aluminum coil with the PE in high temperature. Use the high temperature of the PE to make the film compound to the PE hard. Use 2 pcs of big diameter roller is more suitable for fire-proof ACP (B1).

Water-Cooled Steel Roller
Water-Cooled Rubber Roller
Six Steel Roller
Four Rubber Roller

Unreeling Machine

Equipped with two sets of 630NM magnetic powder brake, increase the stability of unreeling by 50%. Meanwhile the life period of magnetic powder increased by 100% due to the load balancing.

Dual moveable tanks, easier to change the coil, and improve efficiency by 30%.

Equipped with ultrasonic sensor, it can realize the rectification work within 1mm precision on any surface of coil, and ensure the metal coil run within a reasonable range at all times. It has better anti-interference against the influence of stains and high light surface.

Brake：630NM
correcting system
Motor: 1.5KW Siemens
Dual-Brake

Hot-Roller Lamination Machine

The use of 8 sets of Ф395MM large diameter metal seamless mirror roller, liner spiral structure, in the high temperature hot kerosene through the roller wheel, can make the wheel surface temperature error control at ±3℃, if the wheel surface temperature error is too large, the plate will be heated uneven, resulting in part of the low temperature area bonding is not complete, peel strength decline, resulting in waste.A screen that can show the gap between upper and lower roller, which make the operating visually.

four steel roller
160～180 C
395MM OD
Airtac Aircylinder

Cooling Oven

he use of air conditioning type cooling fan for cooling, the composite plate for the best cooling air temperature between 20~25℃, and such temperature requirements on the ambient temperature is very high, generally there will be very little excellent working environment, if specifically to set a constant temperature environment for the workshop, then the annual air conditioning cost a large amount. It is only necessary to keep the cooling air in the fan constant at 20~25℃ through circulating cooling unit and without adding water.

air fans 180W
ac power: 2.7kw 1500M3/H
length: 5M
30 air fans

Evener

Use 2 pcs of Ф160MM mirror rollers as fixed roller, meanwhile use 3 pcs of Ф160MM mirror rollers as adjustable roller, can adjust vertically. The function of it is to make the ACP even.We may take 20MM thick Acrylic panel, so that workers can view the position of adjustable rollers. The traditional way is covered by a 4MM steel panel, workers often run into trouble somehow when they are not able to see the position.
