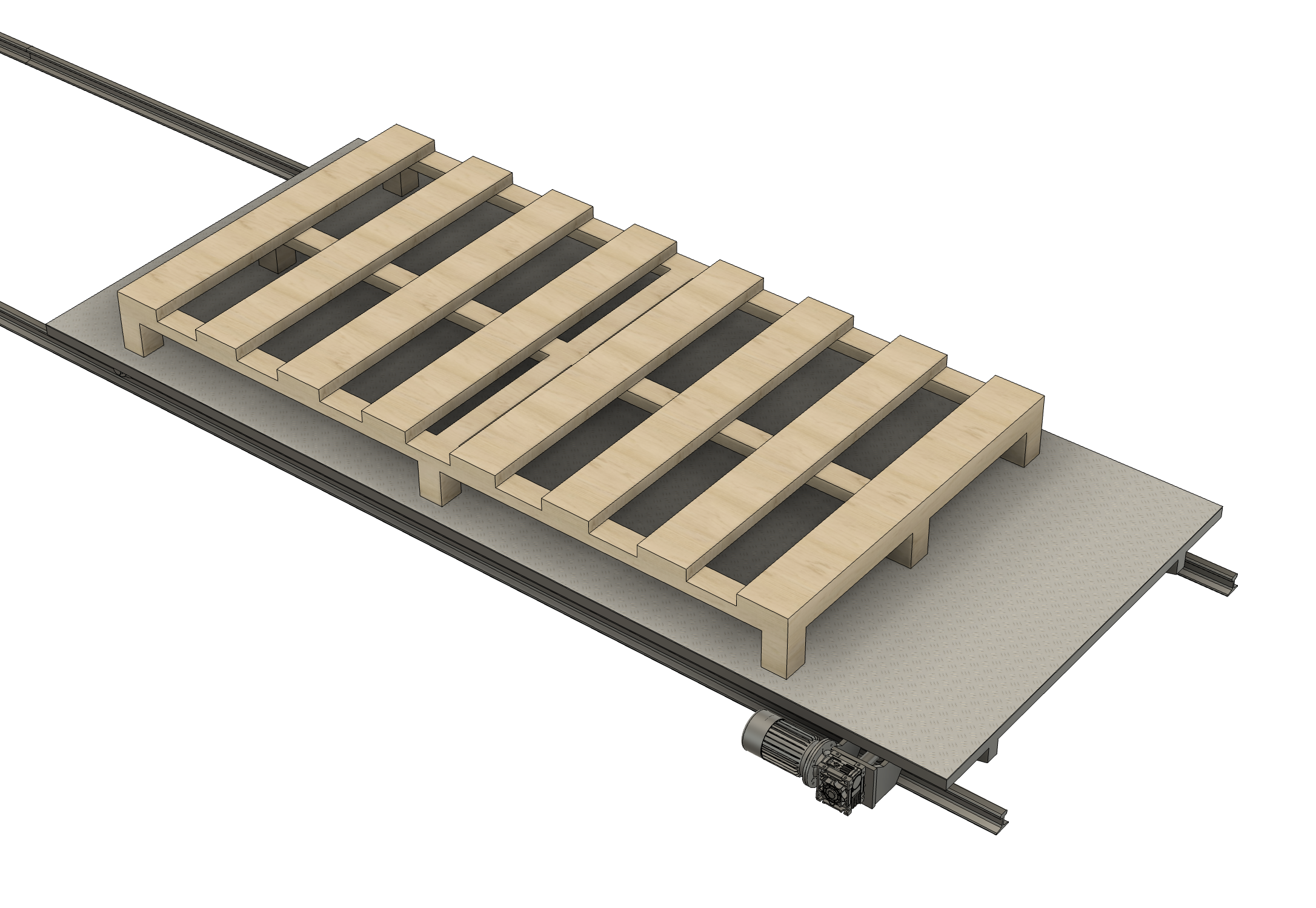

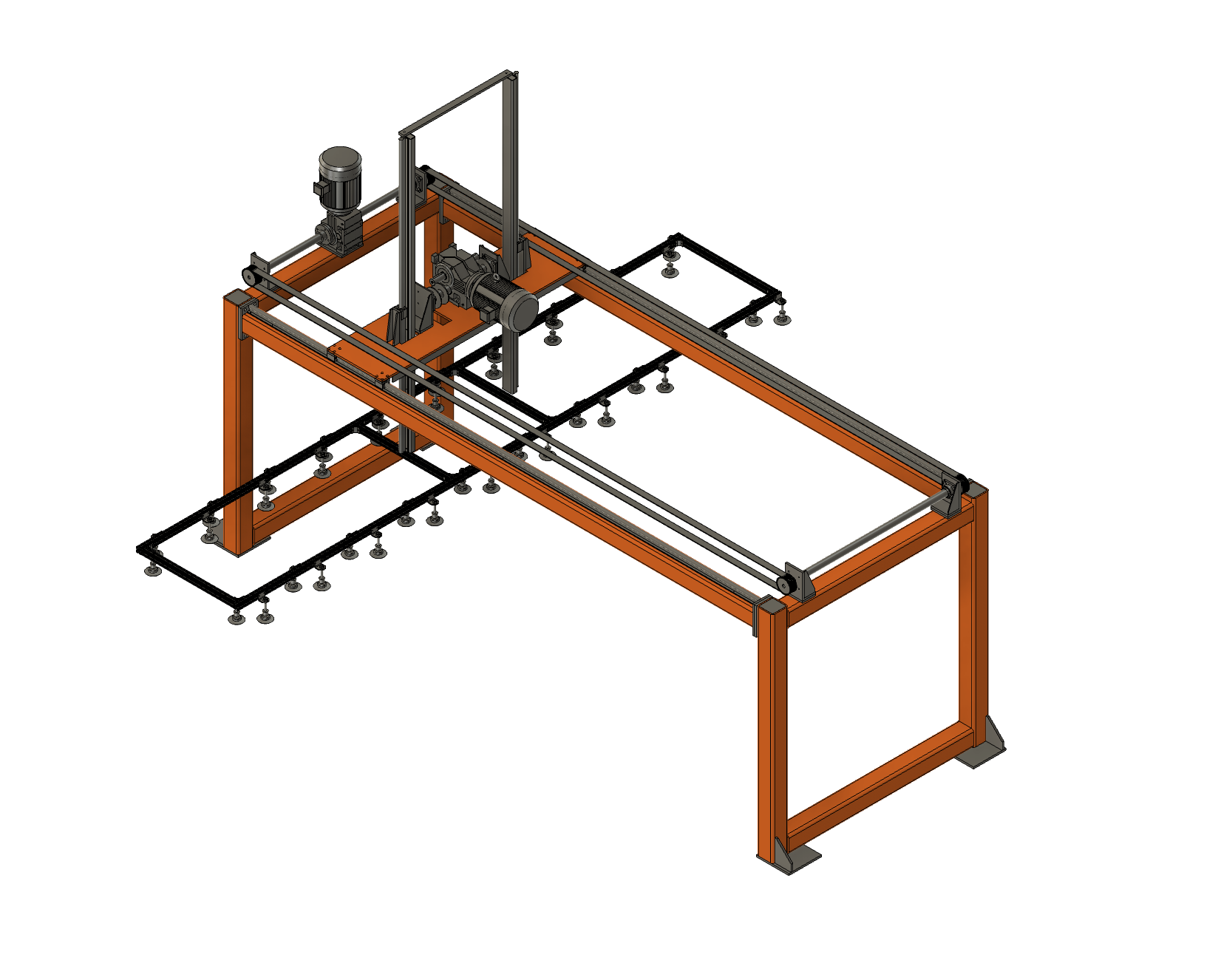

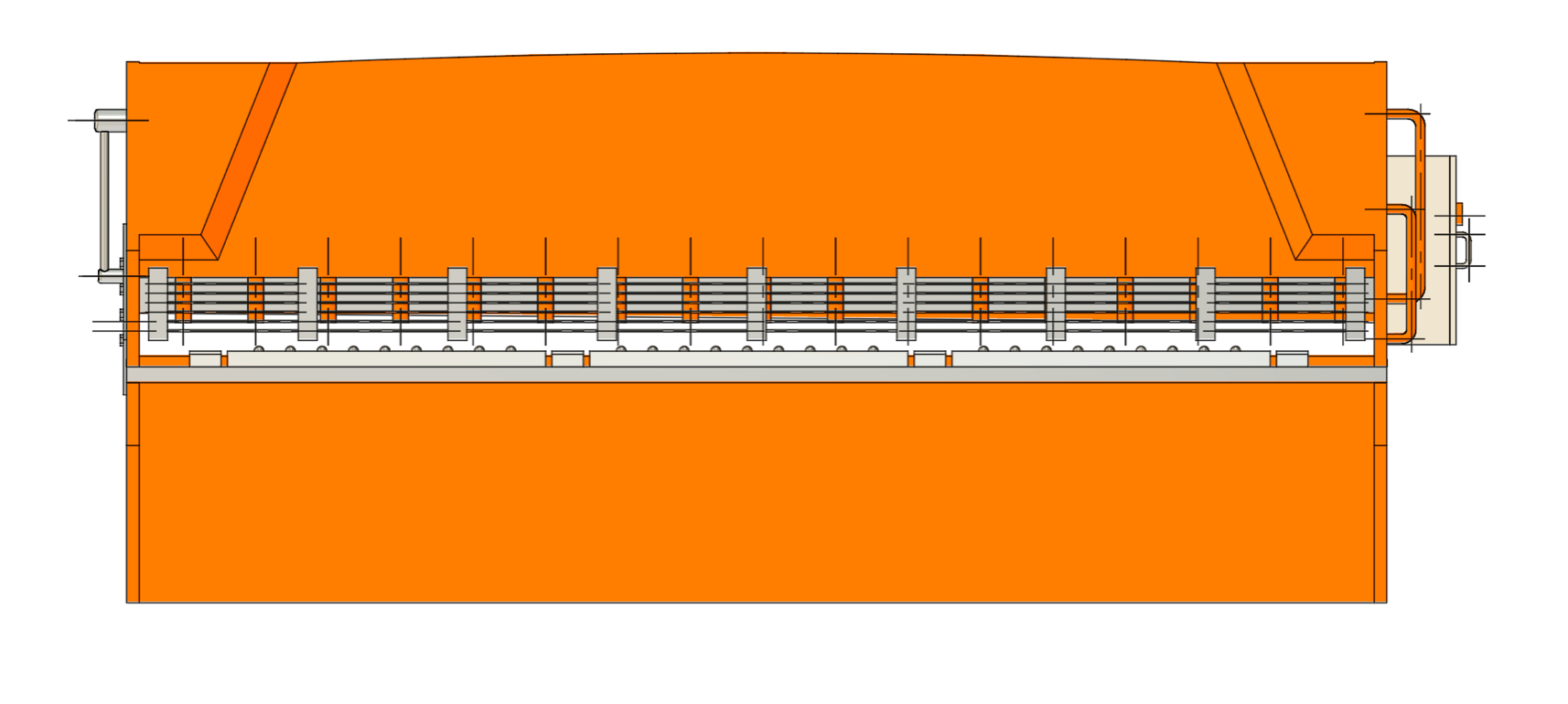

ACoreACPLine - Mogollen

Equipped with two sets of 630NM magnetic powder brake, increase the stability of unreeling by 50%. Meanwhile the life period of magnetic powder increased by 100% due to the load balancing.Dual moveable tanks, easier to change the coil, and improve efficiency by 30%.Equipped with ultrasonic sensor, it can realize the rectification work within 1mm precision on any surface of coil, and ensure the metal coil run within a reasonable range at all times. It has better anti-interference against the influence of stains and high light surface.

Brake: 630NM
Correcting system
Motor: 1.5kw Siemens
dual brake

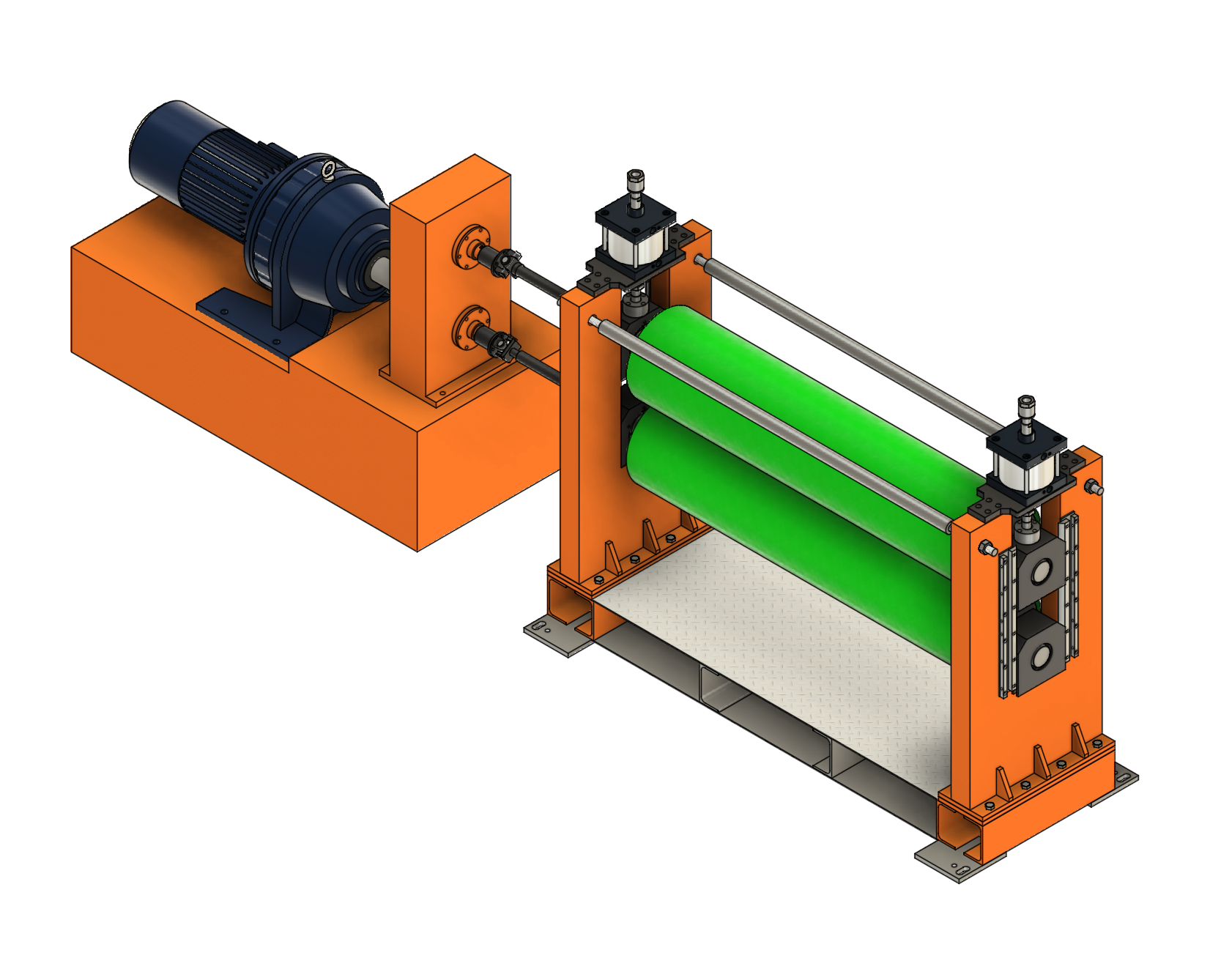

A-Core Driving Machine

This machine is used to provide traction when unreeling the A-Core material. Then there is no need to pull the A-Core through a person.Using 2 rubber rollers(150MM) and 1 0.75kw motor.

750W driving motor
150mm rubber roller
Airtac Air Cylinder
stability

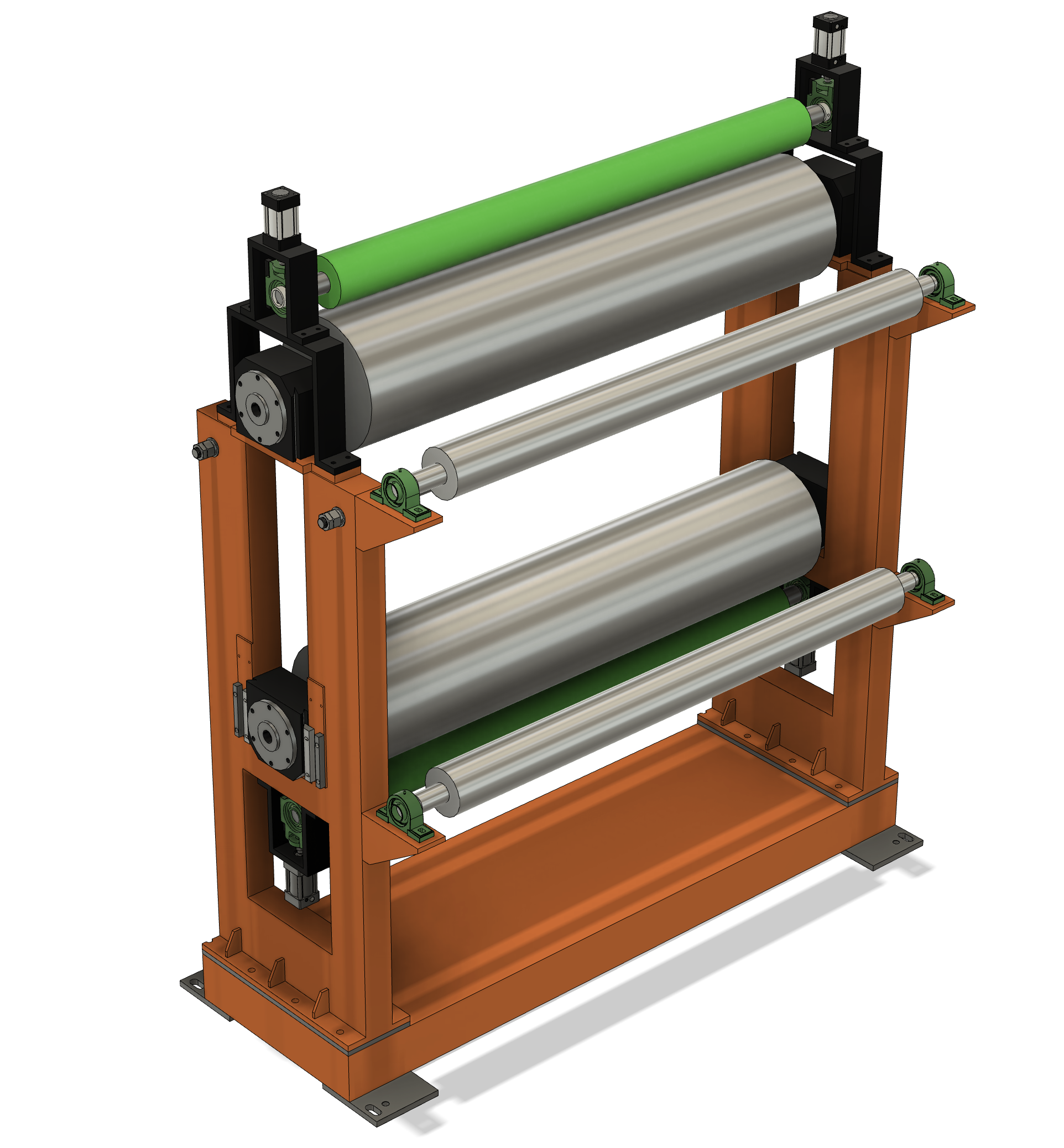

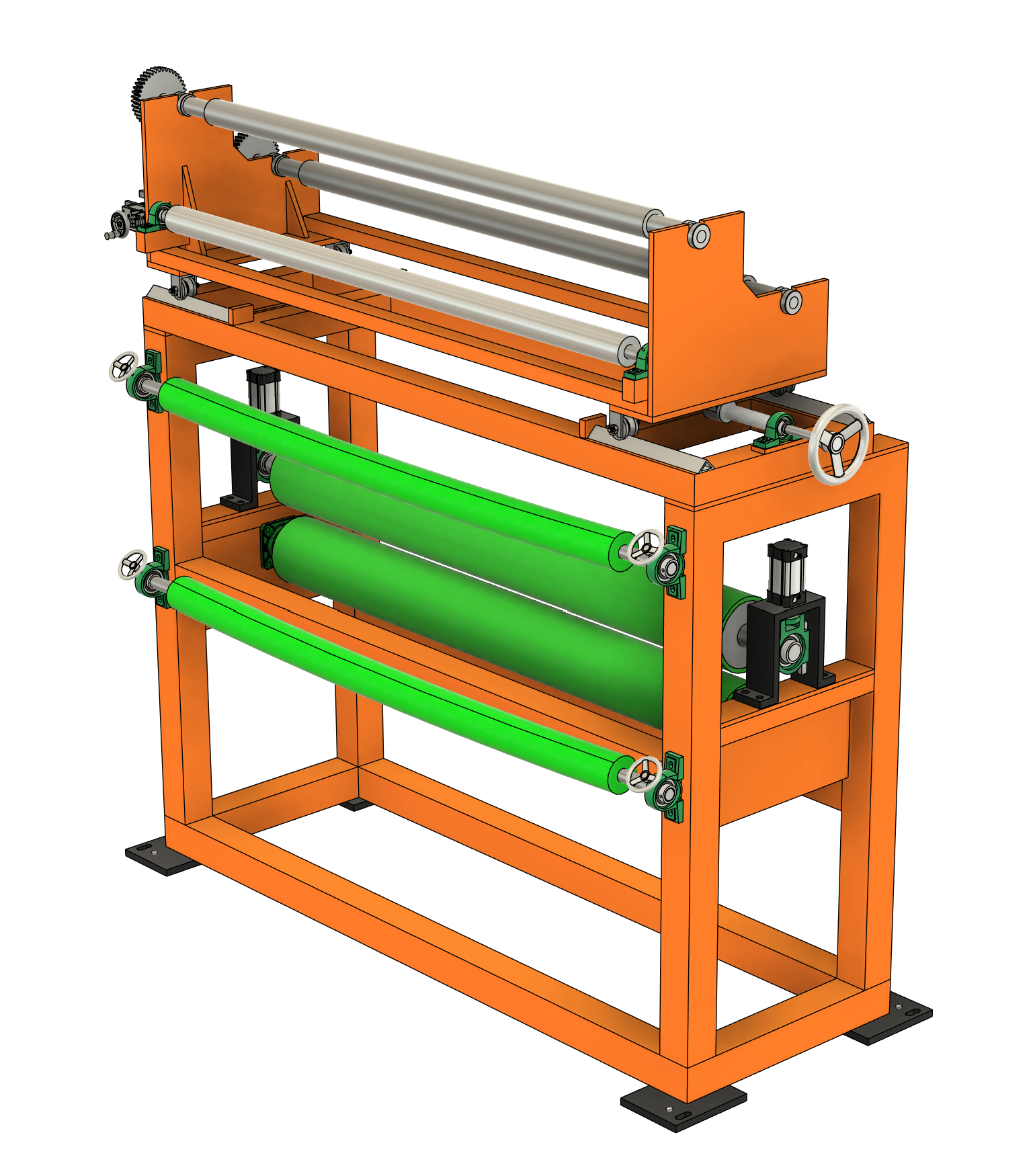

Adhesive Film Lamination

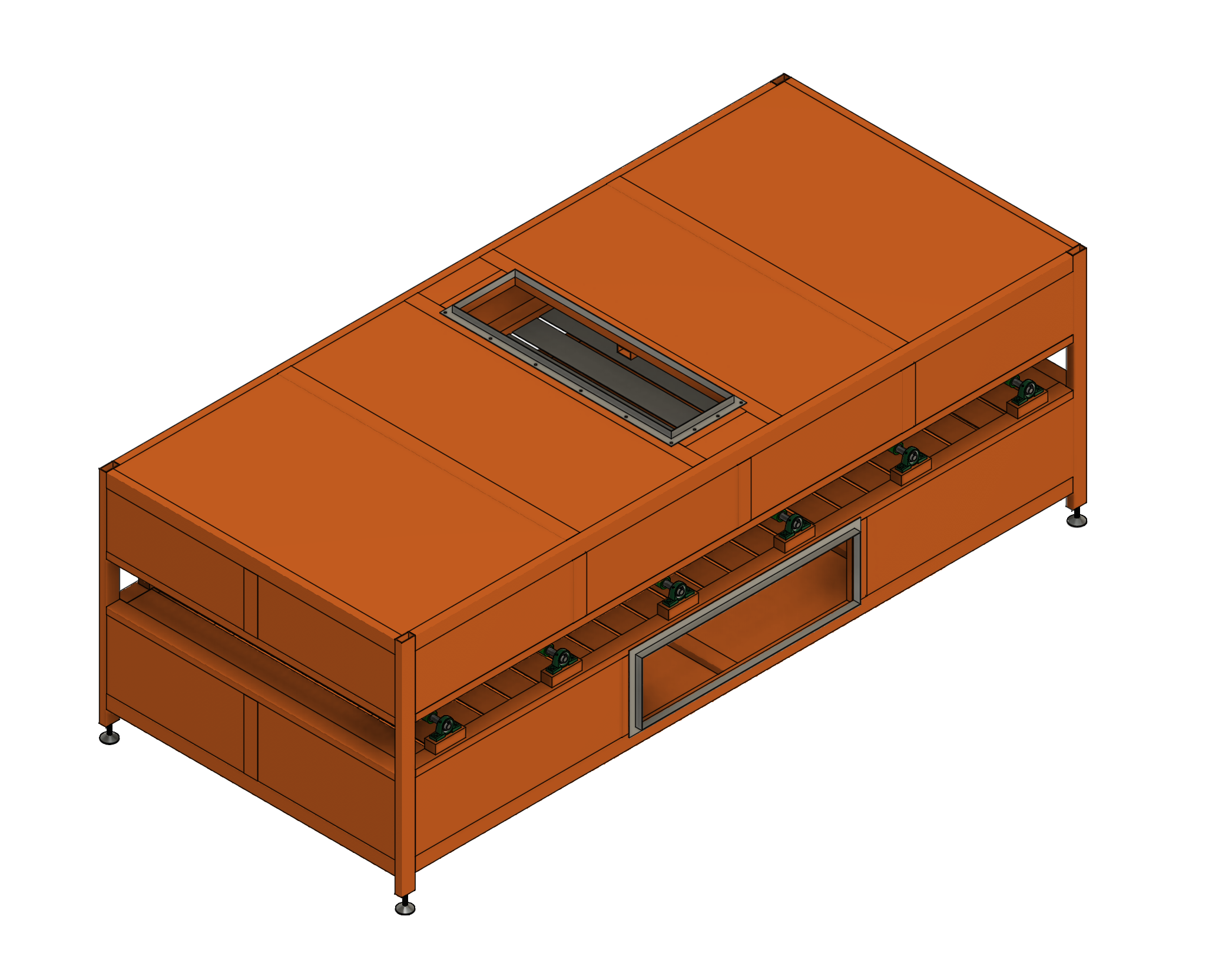

This transition platform is used to even the A-Core, meanwhile this platform has function of splicer.The length of it is 3 meters.The steel roller will be different with the photo.

3M Length
Steel Roller
No Damage to Core
Easily Check

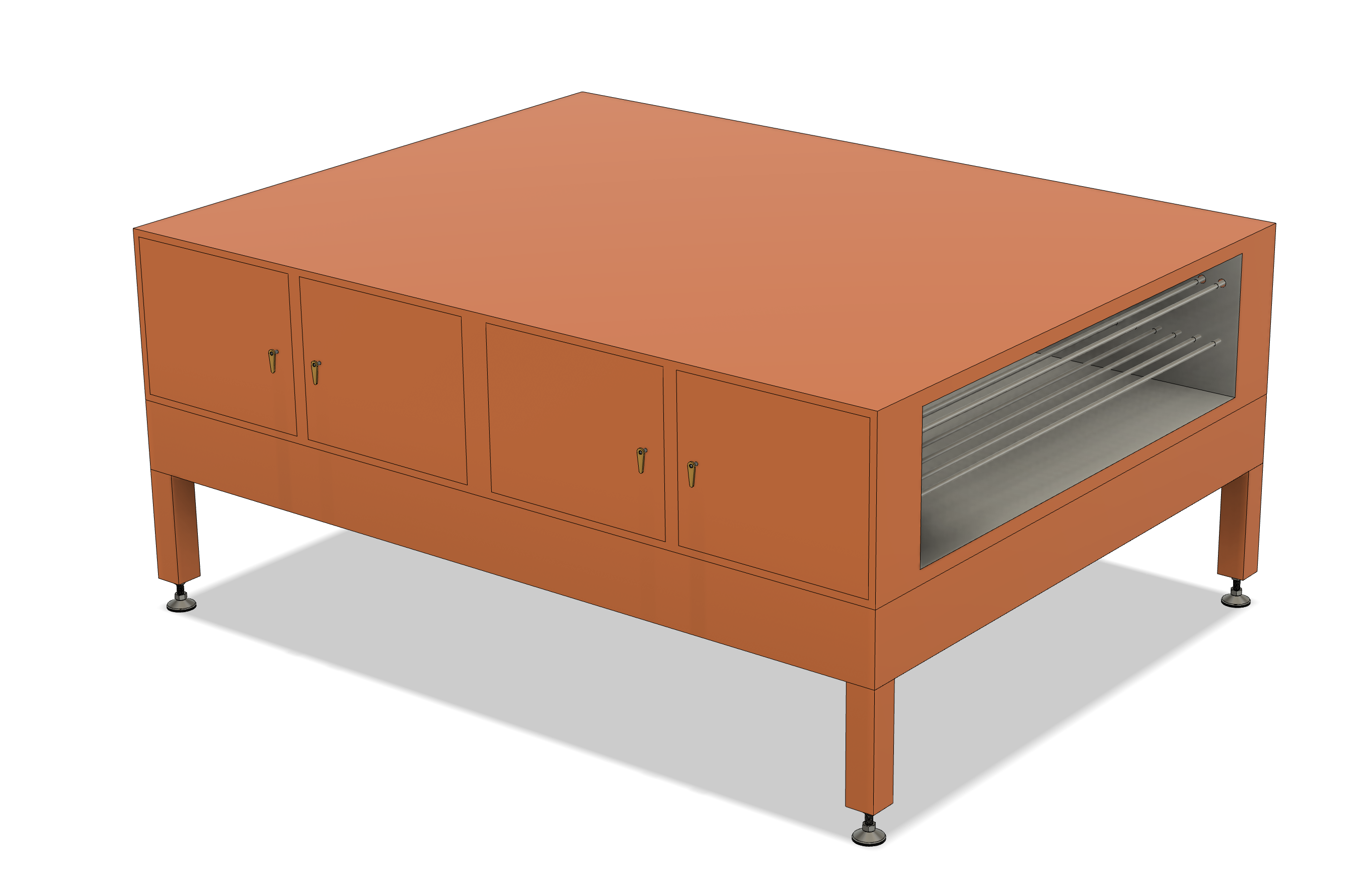

A-Core Heating Oven

This Heating oven is used to raise the temperature of A-Core then reach the requirement of lamination. Usually raise the surface temperature to 180~200 Celsius Degree before lamination.The Heating Power is 80KW by electricity.The length is 3 meters.

80KW Heating Power
Air cycling
Two side heating
pre-lamination

Unreeling Machine

Equipped with two sets of 630NM magnetic powder brake, increase the stability of unreeling by 50%. Meanwhile the life period of magnetic powder increased by 100% due to the load balancing.

Dual moveable tanks, easier to change the coil, and improve efficiency by 30%.

Equipped with ultrasonic sensor, it can realize the rectification work within 1mm precision on any surface of coil, and ensure the metal coil run within a reasonable range at all times. It has better anti-interference against the influence of stains and high light surface.

Brake：630NM
correcting system
Motor: 1.5KW Siemens
Dual-Brake

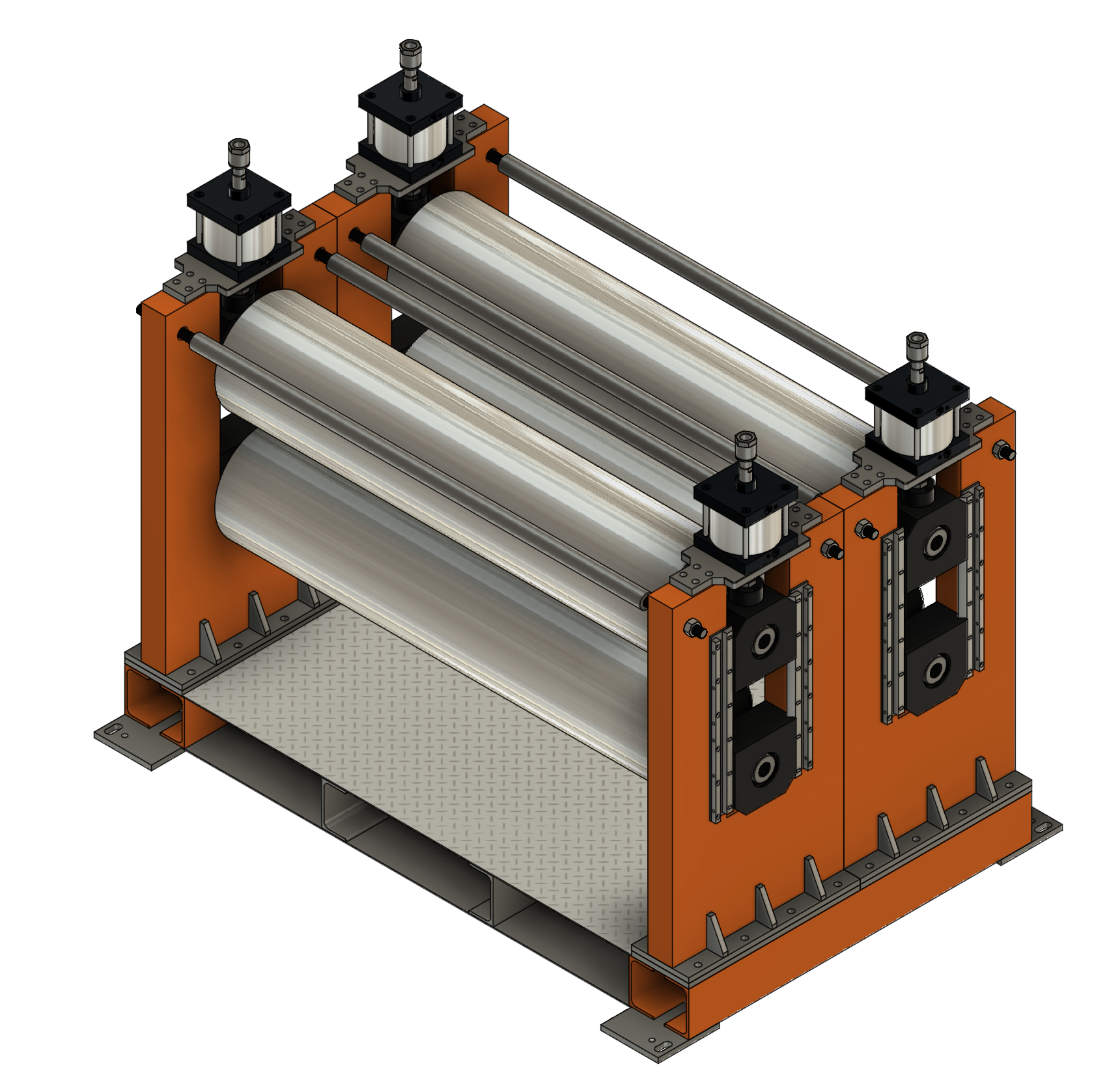

Hot-Roller Lamination Machine

The use of 8 sets of Ф395MM large diameter metal seamless mirror roller, liner spiral structure, in the high temperature hot kerosene through the roller wheel, can make the wheel surface temperature error control at ±3℃, if the wheel surface temperature error is too large, the plate will be heated uneven, resulting in part of the low temperature area bonding is not complete, peel strength decline, resulting in waste.A screen that can show the gap between upper and lower roller, which make the operating visually.

four steel roller
160～180 C
395MM OD
Airtac Aircylinder

Cooling Oven

he use of air conditioning type cooling fan for cooling, the composite plate for the best cooling air temperature between 20~25℃, and such temperature requirements on the ambient temperature is very high, generally there will be very little excellent working environment, if specifically to set a constant temperature environment for the workshop, then the annual air conditioning cost a large amount. It is only necessary to keep the cooling air in the fan constant at 20~25℃ through circulating cooling unit and without adding water.

air fans 180W
rubber rollers
length: 3M
18 air fans

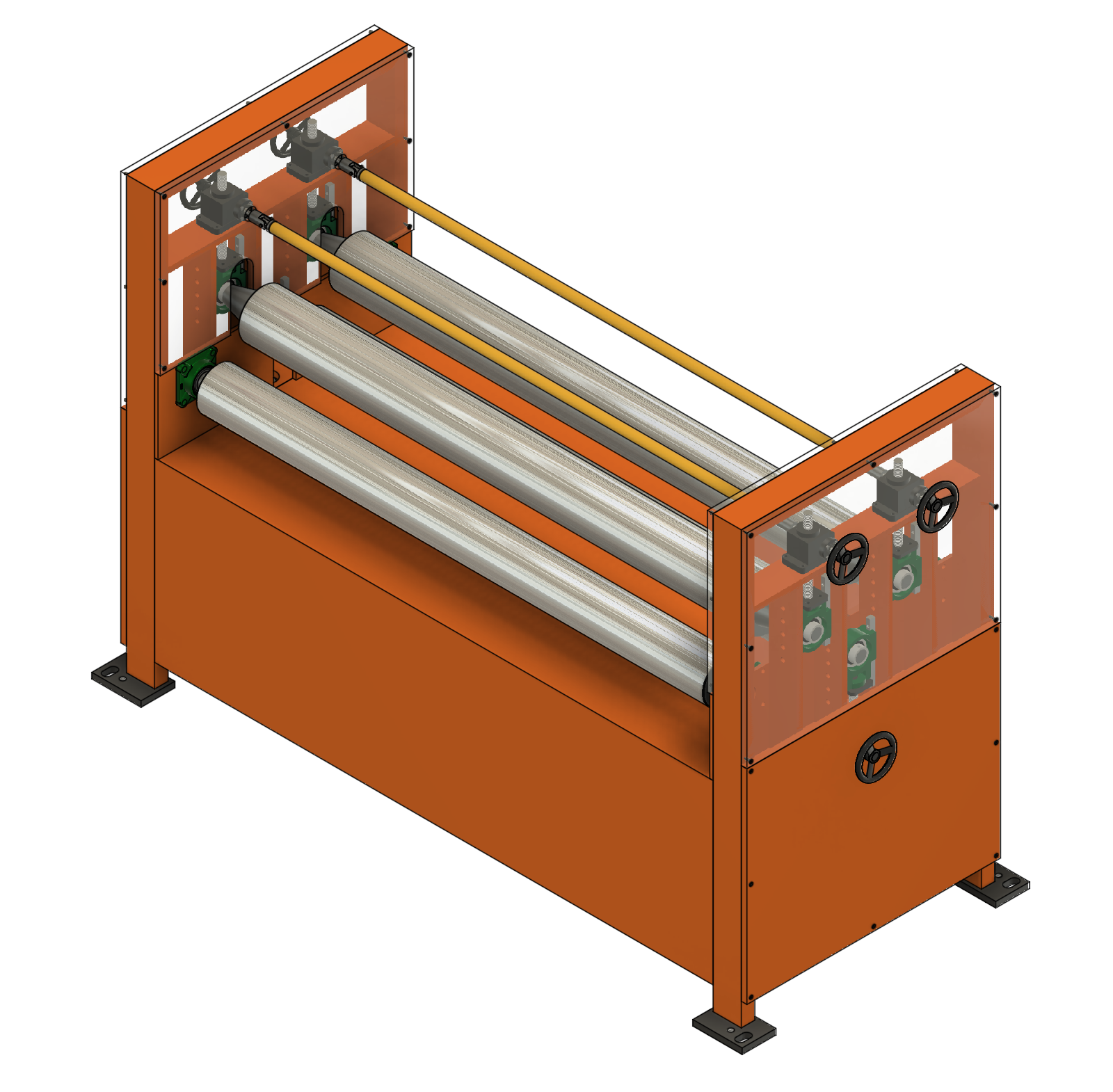

Evener

Use 2 pcs of Ф160MM mirror rollers as fixed roller, meanwhile use 3 pcs of Ф160MM mirror rollers as adjustable roller, can adjust vertically. The function of it is to make the ACP even.We may take 20MM thick Acrylic panel, so that workers can view the position of adjustable rollers. The traditional way is covered by a 4MM steel panel, workers often run into trouble somehow when they are not able to see the position.
